Super Strong Permanent Neodymium Segment Magnet

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: According to the practical ...

Application: Industrial Magnet

Composite: Neodymium Magnet

size: According to customer requi...

apply: motor

Production Capacity: 1000000 piece

Delivery Date: According to the actual num...

Type: Permanent

Grade:: N35-52,M,H,SH,UH,EH

cladding material: Nickel, nickel and copper, ...

shape: Arc

Arc Neodymium magnets are widely used in all kinds of motors, DC motors, Brushless motors, micromotors, wind generators, wind turbines.

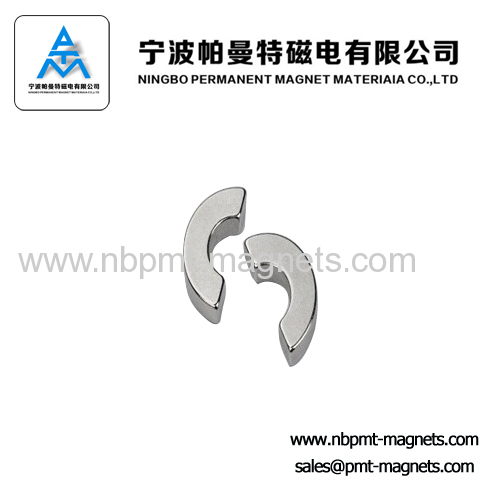

product name Super Strong Permanent Neodymium Magnet in Arc / Segment Shapes

feature
1.applied:industrial magnets
2.shape:Arc

3.Grade:N35-52,M,H,SH,UH,EH

5.size:According to customer requirements

6.apply :motor

7.material :Neodymium Magnets
8.cladding material :Nickel, nickel and copper, nickel, zinc, gold, silver, and the passivation, black epoxy resin
9.Max Working Temperature: 80 ℃

Grade	Residual Induction	Coercive Force	Intrinsic Coercive Force	Maximum Energy Product	Maximum Working Temperature
	Br	Hcb	Hcj	(BH)max	Tw
	mT	kA/m	kA/m	kJ/m3
	[kGs]	[kOe]	[kOe]	[MGOe]
N35	1170-1220	≥868	≥955	263-287	80°
N35	[11.7-12.2]	[≥10.9]	[≥12]	[33-36]	80°
N38	1220-1250	≥899	≥955	287-310	80°
N38	[12.2-12.5]	[≥11.3]	[≥12]	[36-39]	80°
N40	1250-1280	≥907	≥955	302-326	80°
N40	[12.5-12.8]	[≥11.4]	[≥12]	[38-41]	80°
N42	1280-1320	≥915	≥955	318-342	80°
N42	[12.8-13.2]	[≥11.5]	[≥12]	[40-43]	80°
N45	1320-1380	≥923	≥955	342-366	80°
N45	[13.2-13.8]	[≥11.6]	[≥12]	[43-46]	80°
N48	1380-1420	≥923	≥955	366-390	80°
N48	[13.8-14.2]	[≥11.6]	[≥12]	[46-49]	80°
N50	1400-1450	≥796	≥876	382-406	80°
N50	[14.0-14.5]	[≥10.0]	[≥11]	[48-51]	80°
N52	1430-1480	≥796	≥876	398-422	80°
N52	[14.3-14.8]	[≥10.0]	[≥11]	[50-53]	80°
30M	1080-1130	≥805	≥1114	223-247	100°
30M	[10.8-11.3]	[≥10.1]	[≥14]	[28-31]	100°
33M	1130-1170	≥836	≥1114	247-263	100°
33M	[11.3-11.7]	[≥10.5]	[≥14]	[31-33]	100°
35M	1170-1220	≥868	≥1114	263-287	100°
35M	[11.7-12.2]	[≥10.9]	[≥14]	[33-36]	100°
38M	1220-1250	≥899	≥1114	287-310	100°
38M	[12.2-12.5]	[≥11.3]	[≥14]	[36-39]	100°
40M	1250-1280	≥923	≥1114	302-326	100°
40M	[12.5-12.8]	[≥11.6]	[≥14]	[38-41]	100°
42M	1280-1320	≥955	≥1114	318-342	100°
42M	[12.8-13.2]	[≥12.0]	[≥14]	[40-43]	100°
45M	1320-1380	≥995	≥1114	342-366	100°
45M	[13.2-13.8]	[≥12.5]	[≥14]	[43-46]	100°
48M	1370-1430	≥1027	≥1114	366-390	100°
48M	[13.7-14.3]	[≥12.9]	[≥14]	[46-49]	100°
50M	1400-1450	≥1033	≥1114	382-406	100°
50M	[14.0-14.5]	[≥13.0]	[≥14]	[48-51]	100°
35H	1170-1220	≥868	≥1353	263-287	120°
35H	[11.7-12.2]	[≥10.9]	[≥17]	[33-36]	120°
38H	1220-1250	≥899	≥1353	287-310	120°
38H	[12.2-12.5]	[≥11.3]	[≥17]	[36-39]	120°
40H	1250-1280	≥923	≥1353	302-326	120°
40H	[12.5-12.8]	[≥11.6]	[≥17]	[38-41]	120°
42H	1280-1320	≥955	≥1353	318-342	120°
42H	[12.8-13.2]	[≥12.0]	[≥17]	[40-43]	120°
45H	1320-1360	≥963	≥1353	342-366	120°
45H	[13.2-13.6]	[≥12.1]	[≥17]	[43-46]	120°
48H	1370-1430	≥995	≥1353	366-390	120°
48H	[13.7-14.3]	[≥12.5]	[≥17]	[46-49]	120°
35SH	1170-1220	≥876	≥1592	263-287	150°
35SH	[11.7-12.2]	[≥11.0]	[≥20]	[33-36]	150°
38SH	1220-1250	≥907	≥1592	287-310	150°
38SH	[12.2-12.5]	[≥11.4]	[≥20]	[36-39]	150°
40SH	1250-1280	≥939	≥1592	302-326	150°
40SH	[12.5-12.8]	[≥11.8]	[≥20]	[38-41]	150°
42SH	1280-1320	≥987	≥1592	318-342	150°
42SH	[12.8-13.2]	[≥12.4]	[≥20]	[40-43]	150°
45SH	1320-1380	≥1003	≥1592	342-366	150°
45SH	[13.2-13.8]	[≥12.6]	[≥20]	[43-46]	150°
28UH	1040-1080	≥764	≥1990	207-231	180°
28UH	[10.4-10.8]	[≥9.6]	[≥25]	[26-29]	180°
30UH	1080-1130	≥812	≥1990	223-247	180°
30UH	[10.8-11.3]	[≥10.2]	[≥25]	[28-31]	180°
33UH	1130-1170	≥852	≥1990	247-271	180°
33UH	[11.3-11.7]	[≥10.7]	[≥25]	[31-34]	180°
35UH	1170-1220	≥860	≥1990	263-287	180°
35UH	[11.7-12.2]	[≥10.8]	[≥25]	[33-36]	180°
38UH	1220-1250	≥876	≥1990	287-310	180°
38UH	[12.2-12.5]	[≥11.0]	[≥25]	[36-39]	180°
40UH	1250-1280	≥899	≥1990	302-326	180°
40UH	[12.5-12.8]	[≥11.3]	[≥25]	[38-41]	180°
28EH	1040-1080	≥780	≥2388	207-231	200°
28EH	[10.4-10.8]	[≥9.8]	[≥30]	[26-29]	200°
30EH	1080-1130	≥812	≥2388	223-247	200°
30EH	[10.8-11.3]	[≥10.2]	[≥30]	[28-31]	200°
33EH	1130-1170	≥876	≥2388	247-271	200°
33EH	[11.3-11.7]	[≥10.5]	[≥30]	[31-34]	200°
35EH	1170-1220	≥876	≥2388	263-287	200°
35EH	[11.7-12.2]	[≥11.0]	[≥30]	[33-36]	200°
38EH	1220-1250	≥899	≥2388	287-310	200°
38EH	[12.2-12.5]	[≥11.3]	[≥30]	[36-39]	200°
28AH	1040-1080	≥787	≥2624	207-231	220°
28AH	[10.4-10.8]	[≥9.9]	[≥33]	[26-29]	220°
30AH	1080-1130	≥819	≥2624	223-247	220°
30AH	[10.8-11.3]	[≥10.3]	[≥33]	[28-31]	220°
33AH	1130-1170	≥843	≥2624	247-271	220°
33AH	[11.3-11.7]	[≥10.6]	[≥33]	[31-34]	220°
