Product Detail

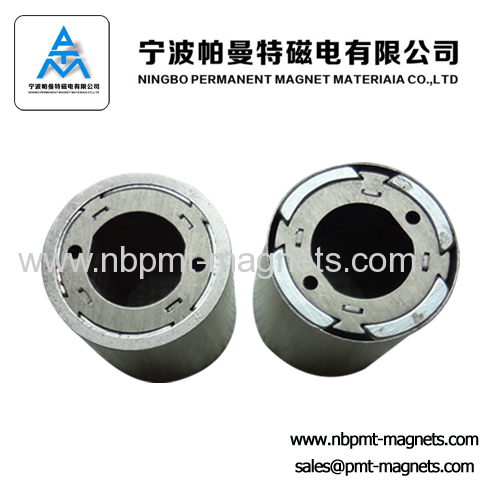

We can produce the roll tile shaped Neodymium magnets-rare earth Magnetische Stoffe, the arc NdFeB magnets are widely used for motors and generators.
product name NdFeB N35 magnetic tile for high performance motor
feature
1.applied:industrial magnets
2.shape:Arc
1.applied:industrial magnets
2.shape:Arc
3.Grade:N35-52,M,H,SH,UH,EH
5.size:According to customer requirements
6.apply :motor
7.material :Neodymium Magnets
8.cladding material :Nickel, nickel and copper, nickel, zinc, gold, silver, and the passivation, black epoxy resin
9.Max Working Temperature: 80 ℃
8.cladding material :Nickel, nickel and copper, nickel, zinc, gold, silver, and the passivation, black epoxy resin
9.Max Working Temperature: 80 ℃
About Neodymium Magnets:
Neodymium magnets are one of rare earth permanent magnets. Neodymium magnets are also known as NdFeB magnets, or neo rare earth magnets. As its magnetic strength is very strong, people also simply call it super strong magnets or super powerful magnets. The main elements of this magnet include neodymium (Nd), iron (Fe) and boron (B).
Physical properties
\
Neodymium magnets are one of rare earth permanent magnets. Neodymium magnets are also known as NdFeB magnets, or neo rare earth magnets. As its magnetic strength is very strong, people also simply call it super strong magnets or super powerful magnets. The main elements of this magnet include neodymium (Nd), iron (Fe) and boron (B).
Physical properties
| Temp.Coeff.OfBr | 0.11%ºC | Temp.Coeff.OfHc | -0.60%ºC |
| Density | 7.3-7.5g/cm² | ElectricalResistivity | 114μ.Ω.Cm |
| Vickers Hardness | 600Hv | FlexuralResitivity | 25kg/mm |
| Tensile Strength | 8.0Kg/mm² | Coeff.OfThermal Expansion | 4x10¯³/ºC |
| Specific Heat | 0.12Kcal/Kg | ThermalCondustivity | 7.7kcal/[m.h.ºC] |
| Young's Modulus | 1.6X10[11]N/m² | Rigidity | 0.64N/m² |
| Poisson's Ratio | 0.24 | Compressibility | 9.8x10-12m²/N |
| Curie Temperature | 310-340ºC |
\
